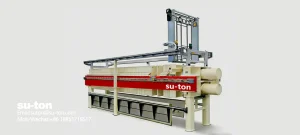

Ultra-high pressure diaphragm filter press XAMYZGFS-800-2000 type

2022/03/16 filter press Chamber Filter Press Sludge Filter Press diaphragm filter press 5108 0

Applications:

Widely used in metallurgy, chemical industry, printing and dyeing, ceramics, food, medicine, mining, coal washing, petroleum, textile, electroplating, papermaking and municipal sewage treatment and other industries, such as a variety of solid-liquid separation fields and other industries.

Product Features:

Feed pressure: 0.6-0.8MPa Filtration area: 10-500m2

Quality Assurance:

The goal is to ensure the quality of the product, using the system, all-round testing.

Reasonably priced:

With excellent products, reasonable price, to achieve the product increasebe on dutyObjective.

Honest co-operation:

Over the decades, we have earned a reputation for integrity and won the market.

Sales:181-181-000-11

Selection:188-517-18-517

Mailbox:suton@su-ton.com

Parameter Download Technical Consultancy

Product Overview Technical parameters common problems Clients

Ultra-high pressure diaphragm filter press:

Ultra High Pressure Diaphragm Pressfilter press(XAMYZGFS-800-2000 type) is our company adopts the latest technology, information technology, intelligent technology and the company's patented technology, multi-cylinder hydraulic compression, multi-head feeding, grouping fast pulling the plate way, so as to achieve fast feeding, fast diversion filtration, fast pulling the plate unloading, shorten the filtration cycle, and improve the separation and filtration of the filtering by the arrangement of the diaphragm and the compartment filter plate to form the filter chamber, under the pressure of the feeding pump, the slurry will be fed into the filter chamber. The slurry is fed into the filter chamber under pressure, and the solids and liquid in the slurry are separated through the filter medium (filter cloth). When the solids in the slurry form a cake, air is passed to the diaphragm to press the solids in the filter chamber sufficiently and reduce the water content. For the filtration of viscous materials and users with higher requirements for water content, the machine has more unique characteristics. The contact surfaces with materials, such as the fixed pressure plate, movable pressure plate, inlet and outlet pipes or flanges, etc., are made of stainless steel 304/316L or PP to prevent corrosion according to the actual needs of customers.

Advantages of Ultra High Pressure Diaphragm Filter Press:

The filter plate of ultra-high pressure diaphragm filter press is made of reinforced polypropylene moulding, the diaphragm and polypropylene plate are inlaid together, which is strong and reliable, not easy to fall off, and has a long service life. The oil tank is made of high-quality steel plate welding (stainless steel can be used according to the needs of customers), and effective surface anti-corrosion treatment is adopted. The oil pump and hydraulic components used in the hydraulic system are all famous brands at home and abroad (Shanghai Shenfu, Huadao, Beijing Huade, Germany Rexroth, etc.) When the whole machine is working, the oil pump and hydraulic components are all famous brands at home and abroad.filter pressHydraulic system is stable, safe and reliable, no oil leakage phenomenon, trouble-free operation for more than 5 years.

Ultra high pressure diaphragm filter press performance:

The advantages and working principle of ultra-high pressure diaphragm high-efficiency energy-saving filter press solid-liquid separation equipment are mainly different from the current ordinary solid-liquid separation equipment is that a layer of elastic membrane is added between the filter plate and the filter cloth. In the operation process, when the end of the feeding material, you can inject high-pressure fluid medium between the filter plate and the diaphragm, at which time the whole diaphragm will bulge and press the filter cake, to achieve further dewatering of the cake, that is, press filtration. The diaphragm combination plate consists of a centre plate with double-sided dovetail grooves and the diaphragm on both sides, which is closely inlaid, thus forming two sealed air pockets. The dovetail groove is processed by large-scale gantry CNC milling machine, with high precision and no air leakage. When compressed air is fed into the airbag, the airbag expands to squeeze the filter cake inside the filter chamber with high pressure, thus the solid content can be greatly increased in a very short period of time.

Compared with ordinary press filtration the solid content can be increased by 10%-30%.Normally, if the water content of the filter cake is reduced by 7%, the energy consumption for drying is reduced by half. After filtering to a certain degree, close the feed valve, the hydraulic drive generated by the slurry with very low solid content is changed to press pressure, so that the liquid remaining in the filter cake is squeezed out. In this way, the solid content of the cake is rapidly increased in a very short period of time, because the cycle of the whole filtration process is shortened, so that the production capacity of the solid-liquid separation equipment is greatly increased, and the handling capacity is significantly increased.

Scope of application of ultra high pressure diaphragm filter press:

wagondiaphragm filter pressIt is the ideal equipment for solid-liquid separation of various suspended materials to improve the separation efficiency and reduce the water content of filter cake. Widely used in petroleum, chemical, printing and dyeing, metallurgy, medicine, food, textile, electroplating, papermaking and urban sewage treatment and other industries in the field of solid-liquid separation.

Technical parameters:

XAMYZG10-500/8001500-U Key performance/technical parameters:
Working filtration pressure	0.6-0.8MPa
Maximum filtration pressure	25MPa
Compacting working pressure	16-20MPa
Filter plate acid and alkali resistance	2＜PH＜12
Temperature resistance of filter plate	0-70°C
valid itinerary	400mm/400mm/600mm/8000mm
Diaphragm Pressure	0.8-1.2MPa (press pressure up to 1.6 or 2.0MPa can be designed according to customer requirements)
Area/Filter Plate	filter plate	capacity	power (output)	weights
mm	lump (of earth)	m³	kw	kg
XAM10/800-U	5	0.15	4	2400
XAM20/800-U	9	0.3	4	2750
XAM30/800-U	14	0.45	4	3100
XAM40/800-U	19	0.6	4	3500
XAM48/800-U	23	0.72	4	3800
XAM50/800-U	24	0.75	4	3900
XAM60/800-U	29	0.9	4	4250
XAM30/1000-U	9	0.45	4	4250
XAM40/1000-U	12	0.6	4	4500
XAM50/1000-U	15	0.75	4	4800
XAM60/1000-U	18	0.9	4	5200
XAM70/1000-U	21	1.05	4	5500
XAM80/1000-U	24	1.2	4	5800
XAM100/1000-U	30	1.5	4	6400
XAM110/1000-U	33	1.65	4	6700
XAM120/1000-U	36	1.8	4	6900
XAM80/1250-U	15	1.2	7.5	7300
XAM100/1250-U	19	1.5	7.5	7800
XAM120/1250-U	23	1.8	7.5	8300
XAM140/1250-U	26	2.1	7.5	8700
XAM150/1250-U	28	2.25	7.5	9100
XAM160/1250-U	30	2.4	7.5	9500
XAM180/1250-U	34	2.7	7.5	10300
XAM200/1250-U	38	3	7.5	11100
XAM220/1250-U	41	3.3	7.5	11800
XAM200/1500-U	26	3	11.5	21100
XAM220/1500-U	29	3.3	11.5	22000
XAM250/1500-U	32	3.75	11.5	23200
XAM280/1500-U	36	4.2	11.5	24500
XAM300/1500-U	38	4.5	11.5	25300
XAM320/1500-U	41	4.8	11.5	26500
XAM340/1500-U	44	5.1	11.5	27500
XAM350/1500-U	45	5.3	11.5	27800
XAM400/1500-U	51	6	11.5	29500
XAM450/1500-U	58	6.75	11.5	31200
XAM500/1500-U	64	7.5	11.5	33200
Remarks:	The final explanation of this product belongs to su-ton and is subject to change without prior notice.
Sales Calls:	TEL:18118100011

Product Download DOWNLOAD

To learn more about our products, please contact our engineers: 188-517-18-517 for your customised solutions.

Contact Us

Sales:181-181-000-11

Selection:188-517-18-517

Mailbox:suton@su-ton.com

Clients

XAMYZG10-500/8001500-U Key performance/technical parameters:
Working filtration pressure	0.6-0.8MPa
Maximum filtration pressure	25MPa
Compacting working pressure	16-20MPa
Filter plate acid and alkali resistance	2＜PH＜12
Temperature resistance of filter plate	0-70°C
valid itinerary	400mm/400mm/600mm/8000mm
Diaphragm Pressure	0.8-1.2MPa (press pressure up to 1.6 or 2.0MPa can be designed according to customer requirements)
Area/Filter Plate	filter plate	capacity	power (output)	weights
mm	lump (of earth)	m³	kw	kg
XAM10/800-U	5	0.15	4	2400
XAM20/800-U	9	0.3	4	2750
XAM30/800-U	14	0.45	4	3100
XAM40/800-U	19	0.6	4	3500
XAM48/800-U	23	0.72	4	3800
XAM50/800-U	24	0.75	4	3900
XAM60/800-U	29	0.9	4	4250
XAM30/1000-U	9	0.45	4	4250
XAM40/1000-U	12	0.6	4	4500
XAM50/1000-U	15	0.75	4	4800
XAM60/1000-U	18	0.9	4	5200
XAM70/1000-U	21	1.05	4	5500
XAM80/1000-U	24	1.2	4	5800
XAM100/1000-U	30	1.5	4	6400
XAM110/1000-U	33	1.65	4	6700
XAM120/1000-U	36	1.8	4	6900
XAM80/1250-U	15	1.2	7.5	7300
XAM100/1250-U	19	1.5	7.5	7800
XAM120/1250-U	23	1.8	7.5	8300
XAM140/1250-U	26	2.1	7.5	8700
XAM150/1250-U	28	2.25	7.5	9100
XAM160/1250-U	30	2.4	7.5	9500
XAM180/1250-U	34	2.7	7.5	10300
XAM200/1250-U	38	3	7.5	11100
XAM220/1250-U	41	3.3	7.5	11800
XAM200/1500-U	26	3	11.5	21100
XAM220/1500-U	29	3.3	11.5	22000
XAM250/1500-U	32	3.75	11.5	23200
XAM280/1500-U	36	4.2	11.5	24500
XAM300/1500-U	38	4.5	11.5	25300
XAM320/1500-U	41	4.8	11.5	26500
XAM340/1500-U	44	5.1	11.5	27500
XAM350/1500-U	45	5.3	11.5	27800
XAM400/1500-U	51	6	11.5	29500
XAM450/1500-U	58	6.75	11.5	31200
XAM500/1500-U	64	7.5	11.5	33200
Remarks:	The final explanation of this product belongs to su-ton and is subject to change without prior notice.
Sales Calls:	TEL:18118100011

Ultra-high-pressure diaphragm filter press XAMYZGFS-800-2000 type - Plate and frame chamber type diaphragm filter press

Technical parameters

XAMYZG10-500/8001500-U Key performance/technical parameters:
Working filtration pressure	0.6-0.8MPa
Maximum filtration pressure	25MPa
Compacting working pressure	16-20MPa
Filter plate acid and alkali resistance	2＜PH＜12
Temperature resistance of filter plate	0-70°C
valid itinerary	400mm/400mm/600mm/8000mm
Diaphragm Pressure	0.8-1.2MPa (press pressure up to 1.6 or 2.0MPa can be designed according to customer requirements)
Area/Filter Plate	filter plate	capacity	power (output)	weights
mm	lump (of earth)	m³	kw	kg
XAM10/800-U	5	0.15	4	2400
XAM20/800-U	9	0.3	4	2750
XAM30/800-U	14	0.45	4	3100
XAM40/800-U	19	0.6	4	3500
XAM48/800-U	23	0.72	4	3800
XAM50/800-U	24	0.75	4	3900
XAM60/800-U	29	0.9	4	4250
XAM30/1000-U	9	0.45	4	4250
XAM40/1000-U	12	0.6	4	4500
XAM50/1000-U	15	0.75	4	4800
XAM60/1000-U	18	0.9	4	5200
XAM70/1000-U	21	1.05	4	5500
XAM80/1000-U	24	1.2	4	5800
XAM100/1000-U	30	1.5	4	6400
XAM110/1000-U	33	1.65	4	6700
XAM120/1000-U	36	1.8	4	6900
XAM80/1250-U	15	1.2	7.5	7300
XAM100/1250-U	19	1.5	7.5	7800
XAM120/1250-U	23	1.8	7.5	8300
XAM140/1250-U	26	2.1	7.5	8700
XAM150/1250-U	28	2.25	7.5	9100
XAM160/1250-U	30	2.4	7.5	9500
XAM180/1250-U	34	2.7	7.5	10300
XAM200/1250-U	38	3	7.5	11100
XAM220/1250-U	41	3.3	7.5	11800
XAM200/1500-U	26	3	11.5	21100
XAM220/1500-U	29	3.3	11.5	22000
XAM250/1500-U	32	3.75	11.5	23200
XAM280/1500-U	36	4.2	11.5	24500
XAM300/1500-U	38	4.5	11.5	25300
XAM320/1500-U	41	4.8	11.5	26500
XAM340/1500-U	44	5.1	11.5	27500
XAM350/1500-U	45	5.3	11.5	27800
XAM400/1500-U	51	6	11.5	29500
XAM450/1500-U	58	6.75	11.5	31200
XAM500/1500-U	64	7.5	11.5	33200
Remarks:	The final explanation of this product belongs to su-ton and is subject to change without prior notice.
Sales Calls:	TEL:18118100011

Product Download DOWNLOAD

To learn more about our products, please contact our engineers: 188-517-18-517 for your customised solutions.

Contact Us

Sales:181-181-000-11

Selection:188-517-18-517

Mailbox:suton@su-ton.com

What are your main products?

Various industrial filter presses include manual, mechanical, hydraulic, programme-controlled automatic, high-pressure diaphragm, automatic flushing, automatic plate vibration and other series, plate and frame filter presses, chamber filter presses, vertical filter presses, belt filter presses and stacked-screw filter presses of more than 200 models.

What are the applications of your products?

Municipal sewage, industrial wastewater, chlor-alkali chemical industry, metallurgy, printing and dyeing, ceramics, food, medicine, iron and steel, mining, petroleum and coal, fine chemical industry, environmental protection and other industries waste liquid treatment, solid-liquid separation and recycling of raw materials in the production process, solid-liquid separation in a number of fields in the leading position.

Can you guys help me choose a model?

Of course! Our engineers need the temperature and viscosity of the material in the state of filtration, physical and chemical properties, processing capacity per unit of time, moisture content of the cake, solid content in the filtrate and so on. Selection of the model according to the placement space. The choice of model size (filter area and chamber volume) is mainly determined by analogy and laboratory tests.

Why is it so slow to quote a price?

Because the filter press belongs to non-standard customisation, there are many models, and the price range is also very large. Even if the same model, the material used and the configuration is not the same, the price difference is also very large, to the most common filter press control parts - PLC, for example, the price of a first-line brand PLC is several times the price of ordinary PLC. Therefore, we need to determine the relevant information, and ultimately give you an accurate price. Under normal circumstances, if you provide more comprehensive information, you can quote within 15 minutes.

What information should I provide when I need a quote?

Normally, if you want to get an accurate quotation, you are recommended to provide us with this information: 1. The type of sludge to be filtered: is it physical sludge, or biochemical sludge? Conventional filter presses are available for physical sludge, while belt and stacked-screw filter presses are required for biochemical sludge, especially sludge containing oil or viscous sludge.

2, the water content of sludge after filtering: chamber filter press, plate and frame filter press, diaphragm filter press after filtering sludge with low water content, stacked-screw filter press after filtering sludge with slightly higher water content, belt filter press with the highest.

3, sludge treatment of continuous or intermittent: chamber filter press, plate and frame filter press, diaphragm filter press filter press can only be used in an intermittent way to deal with sludge, belt filter press and stacked-screw filter press can be a continuous treatment of sludge, high processing efficiency.

4, sludge treatment to meet the floor space requirements: If the customer has a floor space limit, then you can choose vertical filter press, but it will cause the increase of this, if there is no floor space limit, then you can choose other ways.

5, the different forms of filter presses on the feed pump requirements: chamber filter press, plate and frame filter press, diaphragm filter press filtration mode because of the use of intermittent, it is recommended to use diaphragm sludge pumps, while if the belt filter press and stacked screw filter press is recommended to use the sludge screw pumps, you can also use diaphragm sludge pumps.

6, the choice of filter cloth: filter cloth to be selected according to the type of sludge, the regular situation according to our selection book, special circumstances to be selected after a small pilot device test.

7. Site installation conditions (horizontal or vertical installation) and other information.
It's okay if you don't know much about it, our sales managers will assist you in determining that.

Do you have any of your filter presses in stock?

Filter press models and configurations are particularly many, belonging to customised products, we need to select the filter press according to the data you provide to filter the area of the filter, the volume of the chamber, the inlet and outlet of the liquid, the PH value and installation conditions and other working conditions for the selection of filter presses, and to determine the model of the filter press and the configuration of the filter press before delivery to the workshop to place an order for production.

What is your typical lead time?

Depending on the size of the filter press and the specifics of the project, lead times are typically between 30-45 days.

Filter press selection must know:

1. What is the total amount processed in a day (24 hours)?

2. How many hours of work are required in a day (24 hours)?

3. What is the solids content of the sludge sludge at the feed port?

4. The nature of the material (e.g. sludge, calcium carbide sludge, etc.)? Is it organic, biochemical, etc.?

Please contact our sales team for details.

Sales:181-181-000-11

Selection:188-517-18-517

Mailbox:suton@su-ton.com

Clients

unit (of measure)	Specification (㎡)	Number (units)	Materials handled
Tianjin Botian Chemical Co.	FBXYZ800	6	calcium carbide
Tianjin Botian Chemical Co.	FBXYZ120	4	ooze
Tianjin Dagu Chemical Co.	FBXYZ500	16	calcium carbide
Tianjin Dagu Chemical Co.	FBXY500	2	salted water
Tianjin Dagu Chemical Co.	FBXY200	4	salted water
Shanghai Chlor-Alkali General Factory	FBXY130	6	ooze
Shanghai Chlor-Alkali General Factory	FBXY150	2	ooze
Shanghai Chlor-Alkali General Factory	XAZ130	4	ooze
Shanghai Tianyuan Group Huasheng Company	FBXYZ150	7	ooze
Inner Mongolia Yili Chemical Co.	XAYZ800	12	calcium carbide
Inner Mongolia Yili Chemical Co.	XAYZ400	2	ooze
Inner Mongolia Yihua Chemical Co.	FBXY90	2	ooze
Inner Mongolia Yihua Chemical Co.	FBXY54	2	ooze
Inner Mongolia Yihua Chemical Co.	FBXY300	2	calcium carbide
Inner Mongolia Yihua Chemical Co.	XMZ300	5	calcium carbide
Inner Mongolia Yihua Chemical Co.	XAZ150	3	ooze
Baotou Sea Level Polymer Industry Co.	XMZ400	4	ooze
Baotou Sea Level Polymer Industry Co.	XMZ300	2	calcium carbide
Inner Mongolia Shenzhou Silicon Industry Co.	XAZ140	1	ooze
Inner Mongolia Shenzhou Silicon Industry Co.	XAZ60	2	ooze
Inner Mongolia Shenzhou Silicon Industry Co.	XAZ40	2	ooze
Inner Mongolia Shenzhou Silicon Industry Co.	XAZ20	1	ooze
Inner Mongolia Linhai Chemical Co.	FBXY250	4	calcium carbide
Inner Mongolia San'aifu Fluorine Chemical Co.	FBXYZ500	3	calcium carbide
Inner Mongolia Sanlian Chemical Co.	FBXY130	2	ooze
Shandong Binhua Group	FBXY54	2	ooze
Shandong Binhua Group	FBXY130	2	ooze
Shandong Binhua Group	FBXY200	1	ooze
Shandong Binhua Group	FBXY400	6	ooze
Shandong Shouguang Xinlong Electrochemical Group	XAYZ330	5	calcium carbide
Shandong Shouguang Xinlong Electrochemical Group	FBXY120	2	ooze
Shandong Shouguang Xinlong Electrochemical Group	FBXY90	2	ooze
Shandong Shouguang Xinlong Electrochemical Group	FBXY90	3	ooze
Shandong Shouguang Xinlong Electrochemical Group	FBXY60	1	ooze
Shandong Shouguang Xinlong Electrochemical Group	FBXY54	5	ooze
Shandong Shouguang Xinlong Electrochemical Group	XAZ100	1	ooze
Qingdao Haijing Chemical Co.	FBXYZ300	7	calcium carbide
Qingdao Haijing Chemical Co.	FBXY84	4	ooze
Qingdao Haijing Chemical Co.	FBXY300	1	ooze
Qingdao Haijing Chemical Co.	FBXY200	1	salted water
Shandong Weifang Yaxing Chemical Group	FBXY250	2	calcium carbide
Shandong Weifang Yaxing Chemical Group	FBXY130	2	ooze
Shandong Weifang Yaxing Chemical Group	XAY40	2	ooze
Shandong Weifang Yaxing Chemical Group	XAZ150	1	ooze
Shandong Jinan Runyuan Chemical Co.	FBXY54	3	ooze
Jinan Zhongyin Electrochemical Co.	FBXY54	2	ooze
Zhucheng Taisheng Chemical Co.	FBXY54	2	ooze
Zhucheng Taisheng Chemical Co.	FBXY100	2	ooze
Shandong Haike Shengli Electrochemical Co.	FBXY54	2	ooze
Shandong Haike Shengli Electrochemical Co.	FBXYZ120	2	ooze
Shandong Gaomi Kangfeng Agrochemical Co.	FBXY100	2	ooze
Yantai Hengbang Chemical Co.	FBXY80	2	ooze
Yantai Wanhua Chlor-Alkali Thermal Power Co.	FBXY150	2	ooze
Yantai Wanhua Chlor-Alkali Thermal Power Co.	FBXY-YZ300	2	ooze
Shandong Lusi Chemical Co.	XAZ250	1	ooze
Shandong Lusi Chemical Co.	FBXY80	2	ooze
Shandong Jinsheng New Material Technology Co.	XAY80	3	ooze
Shandong Changyi Haineng Chemical Co.	XAYZ120	2	ooze
Shandong Dongying Xiefa Chemical Co.	FBXY200	2	ooze
Shandong Dongying Xiefa Chemical Co.	XAZ200	4	ooze
Shandong Tengzhou Zhongsheng Chemical	XAY100	2	salted water
Shandong Aluminium Company Chlor-Alkali Plant	XAYZ120	1	ooze
Shandong Aluminium Company Chlor-Alkali Plant	XAYZ150	1	ooze
Shandong Haiming Chemical Co.	FBXY120	2	ooze
Shandong Haiming Chemical Co.	XAY90	1	ooze
Shandong Minji Chemical Co.	XMYZ100	2	salted water
Shandong Dongying Jinmao Aluminium Hi-Tech Co.	XAZ120	2	salted water
Shandong Dongying Jinmao Aluminium Hi-Tech Co.	XAZ150	3	salted water
Shandong Xinxian Huaxiang Chlor-alkali Co.	FBXY80	6	ooze
Shandong Rao County Sanzhong Chemical Factory	XAY50	2	ooze
Shandong Haihua Hualong Ammonium Sales Co.	XMYZ50	1	ooze
Shanxi Synthetic Rubber Group Cement Plant	FBXYZ500	3	calcium carbide
Shanxi Synthetic Rubber Group Cement Plant	FBXYZ300	2	calcium carbide
Shanxi Datong Huachang Chemical Co.	FBXY30	1	ooze
Shanxi Datong Huachang Chemical Co.	FBXYZ500	2	calcium carbide
Shanxi Huojia Industry Co.	XAY100	2	ooze
Shanxi Huojia Industry Co.	XAZ800	3	calcium carbide
Kaifeng Chemical General Factory	FBXY54	2	ooze
Jiyuan Fangsheng Chemical Co.	XAZ500	1	calcium carbide
Henan Lianchuang Chemical Co.	FBXY120	4	ooze
Pingxiang Group	XAZ60	1	ooze
Henan Shenma Chlor-alkali Chemical Group	FBXY130	4	calcium carbide
Henan Shenma Chlor-alkali Chemical Group	FBXY54	2	ooze
Henan Shenma Chlor-alkali Chemical Group	FBXY600	4	calcium carbide
Henan Shenma Chlor-alkali Chemical Group	FBXYZ800	1	calcium carbide
Henan Shenma Development Co.	FBXY600	3	calcium carbide
Henan Shenma Development Co.	FBXY100	2	salted water
Henan Jiyuan Resin Factory	FBXY54	3	ooze
Henan Jiyuan Resin Factory	FBXYZ100	2	ooze
Cangzhou Huanghua Chlor-alkali Co.	FBXY70	2	ooze
Hebei Baoshuo Chemical Group	FBXYZ100	2	ooze
Hebei Baoshuo Chemical Group	FBXY54	2	ooze
Hebei Baoshuo Chemical Group	FBXY500	5	calcium carbide
Hebei Jiheng Chemical Powder Co.	FBXY150	1	salted water
Hebei Zunhua Hongyuan Powder Metallurgy Co.	XAZ80	2	ooze
Hebei Zunhua Hongyuan Powder Metallurgy Co.	XAZ60	1	ooze
Hebei Jiheng Chemical Co.	XAYZB40	1	salted water
Hebei Jiheng Chemical Co.	FBXYZB150	3	salted water
Tangshan Sanyou Group Chlor-alkali Plant	FBXYZ228	4	ooze
Tangshan Sanyou Group Chlor-alkali Plant	FBXYZ100	2	ooze
Tangshan Sanfu Silicon Industry Co.	FBXYZ60	2	ooze
Xi'an Chemical Plant	FBXY130	2	ooze
Shaanxi Jintai Chemical Co.	XAYZ150	2	ooze
Shaanxi Beiyuan Chemical Co.	FBXYZ400	4	calcium carbide
Shaanxi Beiyuan Chemical Co.	FBXY300	1	calcium carbide
Shaanxi Beiyuan Chemical Co.	FBXY100	2	ooze
Shaanxi Beiyuan Chemical Co.	FBXYZ800	18	calcium carbide
Shaanxi Beiyuan Chemical Co.	FBXYZ150	6	ooze
Shaanxi Beiyuan Chemical Co.	FBXYZ200	6	ooze
Shaanxi Beiyuan Chemical Co.	FBXYZ-YZ200	1	mercury wastewater
Shaanxi Yulin Salt Chemical Co.	FBXYZ280	1	ooze
Zhejiang Linghu Chemical Factory	FBXY54	2	ooze
Zhejiang Juhua Group	FBXY130	4	ooze
Zhejiang Juhua Group	FBXY54	4	ooze
Hangzhou Electrochemical Group	FBXYZ300	4	calcium carbide
Hangzhou Electrochemical Group	FBXY130	4	ooze
Zhejiang Jiaxing Chemical Factory	FBXY90	2	ooze
Zhejiang Jiaxing Chemical Factory	FBXY30	2	ooze
Jiahua Energy Development Co.	FBXY120	3	ooze
Jiahua Energy Development Co.	FBXY300	3	ooze
Ningbo Donggang Electrochemical Co.	FBXY100	4	ooze
Ningbo Donggang Electrochemical Co.	FBXY150	10	ooze
Zhejiang Shanko Chemical Co.	FBXY130	2	ooze
Zhejiang Lantian Environmental Protection High-Tech Co.	FBXYZ100	2	calcium carbide
Zhejiang Runtu New Material Co.	FBXY-YZ150-K	3	ooze
Anhui Hongsquare Chemical Co.	FBXY300	2	calcium carbide
Anhui Hongsquare Chemical Co.	FBXYZ800	1	calcium carbide
Anhui Hongsquare Chemical Co.	FBXY800	4	calcium carbide
Anhui Hongsquare Chemical Co.	FBXY200	2	calcium carbide
Anhui Hongsquare Chemical Co.	FBXY100	3	ooze
Anhui Hongsquare Chemical Co.	FBXY150	2	salted water
Anhui Hongsquare Chemical Co.	BAY40	1	ooze
Anhui Bayi Chemical Group Co.	FBXY90	2	ooze
Anhui Bayi Chemical Group Co.	XAZ100	1	ooze
Anhui Bayi Chemical Group Co.	XAZ20	2	ooze
Anhui Bayi Chemical Group Co.	FBXY54	2	ooze
Anhui Bayi Chemical Group Co.	FBXY50	1	ooze
Anhui Bayi Chemical Group Co.	XAZ40	2	ooze
Anhui Wuhu Ronghui Chemical Co.	FBXY54	3	ooze
Jiangsu Zhongshan Chemical Co.	FBXYZ200	1	calcium carbide
Jiangsu Zhongshan Chemical Co.	FBXYZ250	1	calcium carbide
Jiangsu Ribeiro Engineering Co.	FBXY120	3	ooze
Sinopec Nanjing Chemical Co.	FBXY150	2	ooze
Nanjing Jinpu Jinhu Chemical Co.	FBXYZ160	3	ooze
Jiangsu Suhua Chemical Group	FBXYZ300	3	calcium carbide
Jiangsu Suhua Chemical Group	FBXY54	3	ooze
Jiangsu Suhua Chemical Group	FBXY100	4	ooze
Jiangsu Suhua Chemical Group	XAY80	1	Secondary Brine Refining
Sunpur Chemical Co.	FBXY54	2	ooze
Sunpur Chemical Co.	FBXY100	1	ooze
Jiangsu Changshu Zhonghao Chemical Co.	FBXYZ130	5	calcium carbide
Jiangsu Changshu Zhonghao Chemical Co.	FBXYZ500	2	calcium carbide
Jiangsu Wuxi Green Aipu Chemical Co.	FBXYZ300	3	calcium carbide
Jiangsu Wuxi Green Aipu Chemical Co.	FBXY130	4	calcium carbide
Jiangsu Wuxi Green Aipu Chemical Co.	FBXY90	2	ooze
Wuxi Green Aipu Zhenjiang Branch	XAZ150	3	ooze
Changzhou Xindong Chemical Development Co.	FBXYZ150	2	ooze
Changzhou Xindong Chemical Development Co.	FBXYZ500	2	calcium carbide
Changzhou Xindong Chemical Development Co.	FBXYZ90	1	ooze
Changzhou Xindong Chemical Development Co.	XAYZ54	2	ooze
Jiangsu Jiangdong Chemical Co.	FBXYZ500	2	calcium carbide
Jiangsu Jiangdong Chemical Co.	FBXY130	6	calcium carbide
Jiangsu Jiangdong Chemical Co.	FBXY90	2	ooze
Jiangsu Jiangdong Chemical Co.	FBXYZ90	1	ooze
Jiangsu Zhenjiang No.2 Chemical Plant	XAY40	2	ooze
Jiangsu Zhenjiang No.2 Chemical Plant	XAY70	1	ooze
Jiangsu Dahe Chlor-alkali Chemical Co.	FBXY130	2	ooze
Jiangsu Dahe Chlor-alkali Chemical Co.	FBXY150	4	ooze
North Chlor-Alkali Chemical Co.	FBXYZ500	2	calcium carbide
North Chlor-Alkali Chemical Co.	FBXY54	4	ooze
Xuzhou Tiancheng Chlor-alkali Chemical Co.	FBXY300	3	calcium carbide
Xuzhou Tiancheng Chlor-alkali Chemical Co.	FBXY100	2	ooze
Xuzhou Tiancheng Chlor-alkali Chemical Co.	XAZ90	2	calcium carbide
Xuzhou Tiancheng Chlor-alkali Chemical Co.	XAZ300	1	ooze
Jiangsu Anbang Chemical	FBXY100	7	ooze
Jiangsu Meilan Chemical Co.	FBXY100	4	ooze
Jiangsu Meilan Chemical Co.	FBXY54	3	ooze
Jiangsu Meilan Chemical Co.	XAYZ110	2	ooze
Taizhou Qingsong Fine Chemical Co.	FBXYZ300	3	calcium carbide
Taizhou Qingsong Fine Chemical Co.	FBXYZ500	3	calcium carbide
Jiangsu Yangnong Chemical Group	FBXYZ200	2	barium salt
Jiangsu Yangnong Chemical Group	FBXY130	4	ooze
Nantong Jiangshan Pesticide Co.	FBXY60	2	ooze
Nantong Jiangshan Pesticide Co.	FBXYZ300	3	ooze
Jiangsu Ushi Chemical Co.	XMY100	1	ooze
Jiangsu Ushi Chemical Co.	XMY70	1	ooze
Zhangjiagang Shuangli Fine Chemical Co.	FBXY90	3	ooze
Fangda Jinhua Chemical Technology Co.	FBXY90	3	ooze
Fangda Jinhua Chemical Technology Co.	FBXYZ90	1	ooze
Fangda Jinhua Chemical Technology Co.	XAY90	6	calcium carbide
Fangda Jinhua Chemical Technology Co.	XAYZ160	6	ooze
Fangda Jinhua Chemical Technology Co.	FBXY-YZ250	6	ooze
Shenyang Chemical Co.	FBXYZ400	6	calcium carbide
Shenyang Chemical Co.	FBXY130	2	ooze
Shenyang Chemical Co.	XMYZ250	2	ooze
Liaoning Benxi Dongfang Chlor-alkali Co.	XA130	1	ooze
Heilongjiang Jiamusi Resin Factory	FBXYZ130	2	ooze
Siping Haohua Chemical Co.	FBXY54	3	ooze
Siping Haohua Chemical Co.	FBXYZ315	1	calcium carbide
Siping Haohua Chemical Co.	FBXY100	4	ooze
Changchun Chemical (Panjin) Co.	FBXY200	2	ooze
Jilin Jihua Northern Lianteng Chemical Co.	FBXY-YZ80	2	salted water
Yueyang Petrochemical General Factory	FBXYZ90	2	ooze
Hunan Chenzhou Huaxiang Chemical Co.	XMZ600	4	calcium carbide
Hunan Hengyang Kingboard Industrial Co.	FBXY560	5	calcium carbide
Hunan Hengyang Kingboard Industrial Co.	FBXY120	2	salted water
Hubei Yihua Chuxing Chemical Co.	XMYZ150	1	ooze
Hubei Xingrui Chemical Co.	XAZ150	2	salted water
Hubei Xingrui Chemical Co.	XAYZ120	2	salted water
Hubei Xingrui Chemical Co.	XAYZ50	2	ooze
Hubei Shalongda Co.	FBXYZ150	2	ooze
Yichang Ruijin Industry & Trade Co.	XAZB126	3	calcium carbide
Wuhan Xianglong Electric Co.	FBXYZ800	3	calcium carbide
Wuhan Xianglong Electric Co.	FBXYZ200	1	ooze
Wuhan Xianglong Electric Co.	FBXY30	1	ooze
Jiangxi Hukou Xinkangda Industrial Chemical Co.	FBXY90	2	ooze
Jiangxi Hukou Xinkangda Industrial Chemical Co.	FBXY80	3	ooze
Jiangxi Xinghuo Organosilicon Factory	FBXY130	2	ooze
Jiangxi Xinghuo Organosilicon Factory	FBXYJ130	1	ooze
Jiangxi Safeway Chemical Co.	XAZ120	2	ooze
Jiangxi Jiuji Salt Industry Co.	FBXY80	2	ooze
Ganzhou Chlor-Alkali Manufacturing Co.	FBXY80	1	ooze
Sichuan Honghe Chemical Factory	FBXY54	4	ooze
Sichuan Silicon Peak Organosilicon Material Co.	FBXY100	2	ooze
Sichuan Luzhou Xinfu Chemical Co.	FBXY80	1	ooze
Sichuan Luzhou Xinfu Chemical Co.	FBXY120	1	ooze
Sichuan Tianyuan Tianquan Salt Chemical Co.	XAZB40	7	ooze
Chongqing Yingtianhui Chlor-alkali Co.	FBXY150	2	ooze
Chongqing Yingtianhui Chlor-alkali Co.	XAYZ150	1	ooze
Chongqing Tianyuan Chemical Co.	XAZ50	2	ooze
Sichuan Zigong Zhangjiaba Chlor-alkali Chemical Co.	XAY40	4	salted water
Sichuan Zigong Zhangjiaba Chlor-alkali Chemical Co.	FBXY70	3	ooze
Sichuan Zigong Zhangjiaba Chlor-alkali Chemical Co.	FBXY80	3	ooze
Chengdu Huarong Chemical Co.	XMY340	8	calcium carbide
Chengdu Huarong Chemical Co.	XMY50	2	ooze
Chengdu Huarong Chemical Co.	XMYZ60	1	ooze
Sichuan Tianhua Co.	XAZ300	2	calcium carbide
Sichuan Leshan Fuhuatongda Pesticide Technology Co.	FBXY1250	2	salted water
Leshan Lianfeng Salt Chemical Limited Liability Company Datong Branch	XMYZB200-K	1	ooze
Yunnan Chemical Plant	FBXY54	2	ooze
Guangdong Foshan Huahao Chemical Co.	FBXYZ54	2	ooze
Guangzhou Haotian Chemical Group	FBXY54	2	ooze
Guangdong Jiangmen Guangyue Co.	FBXY130	3	salted water
Guangdong Luyuan Dongyangyang Electrochemical Factory	XAY60	2	ooze
Guangdong Luyuan Dongyangyang Electrochemical Factory	XAY120	4	ooze
Guangxi Liuzhou Dongfeng Chemical Co.	XAZ300	3	calcium carbide
Guangxi Nanning Chemical Co.	XMYZ400	1	calcium carbide
Guangxi Nanning Chemical Co.	XMZ60	2	ooze
Guangxi Nanning Chemical Co.	FBXY90	2	ooze
Fujian Southeast Electrochemical Group	FBXY200	4	calcium carbide
Fujian Southeast Electrochemical Group	FBXY130	2	ooze
Fuzhou Yihua Chemical Co.	FBXY20	6	ooze
Fuzhou Yihua Chemical Co.	FBXY30	13	ooze
Fuzhou Yihua Chemical Co.	FBXY50	6	ooze
Fujian Meizhouwan Chlor-alkali Industry Co.	FBXY200	3	calcium carbide
Fujian Meizhouwan Chlor-alkali Industry Co.	FBXY130	2	ooze
Fujian Nanping Rongchang Chemical Co.	FBXY130	1	ooze
Fujian Longyan Longhua Chemical Co.	XAY80	1	ooze
Tenglong Speciality Resins Co.	XMYZBG40	1	ooze
Gansu Rare Earth Group Golden Panda Rare Earth Co.	XAYZ40	2	salted water
Ningxia Jinyuyuan Guangtuo Energy Co.	FBXY-YZ200	3	salted water
Xining Zhaoqing New Building Materials Co.	FBXYZ250	2	calcium carbide
Qinghai Yihua Chemical Co.	FBXY300	2	calcium carbide
Qinghai Salt Lake Haina Chemical Co.	XAYZB70	1	ooze
Qinghai Salt Lake Haina Chemical Co.	XMYZ250	1	calcium carbide
China Chengda Engineering Co.	XMYZ200	4	salted water
China Chengda Engineering Co.	XMYZ150	2	ooze
Xinjiang Caustic Soda Plant	FBXY30	2	ooze
Xinjiang Caustic Soda Plant	FBXY15	1	ooze
Xinjiang Yihua Co.	FBXY800	16	calcium carbide
Xinjiang Tianye Co.	FBXY100	2	ooze
Chemical Plant, Jambi Province, Indonesia	FBXY54	4	ooze
Surabaya Chemical Plant, Indonesia	FBXY54	4	ooze
Sudan Chemical Plant	FBXY15	1	ooze
Bangladesh (formerly East Pakistan)	XAY200	8	ooze
Latvia	XAY15	2	ooze
Syria	XAZ40	2	ooze
Mexico	XAY15	1	ooze
Spanish	XAY80	1	salted water
Spanish	XAY40	1	salted water
Iranian	FBXY20	2	salted water
Istanbul	XMZ300	3	ooze

Recommended

Hello!sign in

Expand More

downloadingDownload

Product Classification

service

Service Support

Technical Literatureliterature

Filter Press Dewatering System for Lithium Mica Concentrate
2024/08/18 555
Lithium has a low melting point, high boiling point, the most negative potential, light weight and other characteristics, is widely used in new energy vehicles, nuclear industry, aviation, medical and other fields. Lithium is the most important basic raw material for the new energy industry, and is known as the "new energy of the 21st century". In order to accelerate the realisation of the strategic goal of "Carbon Neutral, Carbon Peak", China...
View full text
Plate and frame diaphragm chamber filter press operation process common problems and treatment
2024/07/29 585
In the coal gasification industry, the gasification filter cake is usually blended into the power coal for blending and use, but because of the high water content of the filter cake, direct blending will cause power coal plugging. In order to reduce the risk of power coal blending and plugging, it is necessary to further reduce the water content of the filter cake. Plate and frame filter press can reduce the water content of filter cake very well, so to ensure that the plate...
View full text
Optimisation of fast-opening high-pressure diaphragm filter press system in coal washing plant
2024/07/28 575
Filter press is the commonly used equipment for tailing coal treatment and dewatering in coal washing plant at this stage, which has the advantages of strong processing capacity, good dewatering effect, low noise, low energy consumption and so on. The fine coal slurry (particle size below 0.25mm) dewatering of Hupoji Coal Wash Plant uses ZKG450/2000-U type fast-opening diaphragm filter press, and the products are conveyed through the belt-type ...
View full text

View All

Contact UsAbout us
